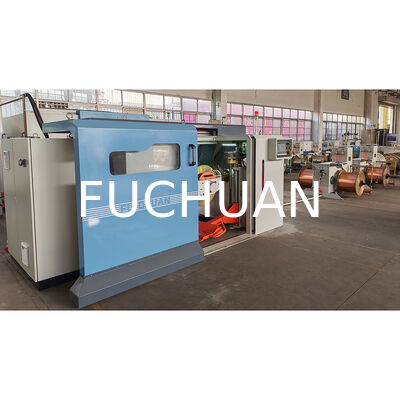

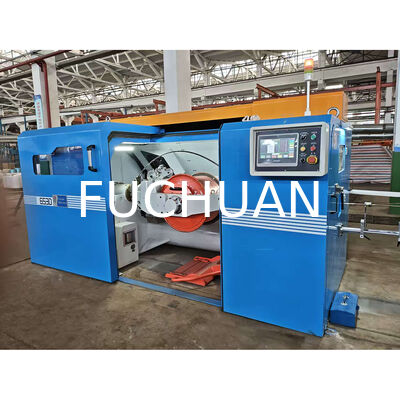

Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity

Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity
Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity
Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity

Imagem Grande :  Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity

Detalhes do produto:
Lugar de origem: China Kunshan
Marca: FUCHUAN
Certificação: CE
Número do modelo: FC-653D
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 CONJUNTO
Preço: negotiable
Detalhes da embalagem: simplesmente embalado
Tempo de entrega: 45 dias
Termos de pagamento: T/T, L/C
Habilidade da fonte: 200 pontos/mês
Contato

Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity

descrição
Especificações da bobina: φ500mm-φ630 Tensão: 380 V
Diâmetro de fio de cobre: 0,12 mm-0,68 mm Tom: pode ser ajustável
Velocidade máxima de rotação: 3.000 (6.000 tpm) Cor: azul céu / verde maçã
Terminar: Temperador e moagem Modo de operação: Operação da tela sensível ao toque
Outro nome: Máquina de perfuração de cobre Pegue a bobina: diâmetro 300mm/400mm/450mm
Destacar:

high-speed CNC stranding machine

,

automatic winding copper wire machine

,

2000kg load capacity wire laying machine

Basic Info.

Model NO.
FC-654D
Condition
New
Certification
FDA, RoHS, ISO, CE
Warranty
24 Months
Automatic Grade
Automatic
Mould Life
<300,000 Shots
Type
High-speed Stranding Machine
Bow
Carbon Fiber/Stainless Steel
Color
Customized
Etd
30days
Max Speed
2600rpm
Pay-off Speed
200m/Min
Power
15kw
Transport Package
Wooden Box
Specification
4500kg
Trademark
FCJD
Origin
Kunshan, China
HS Code
8479400000
Production Capacity
200 Sets Per Month

Product Description


high-performance bunching machine
Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing projects.
Designed with advanced technology and robust materials, this bunching machine ensures high speed, smooth operation.
Suitable for stranding conductors such as bare copper wire, tinned wire and aluminum alloy wire, which are used in
automotive wire, electronic wire and power cord.
Specification
Features
1.IoT access: Ethernet ports are reserved for loT access, which can display rotation speed, stranding specifications, wire speed, output, equipement maintenance, etc.
2. Carbon Fibre bow: Adopting high quality carbon fibre bow, single bow design, light weight, energy savingmore than 25%.
3. Electronic control pitch: can set the pitch value on the PLC panel.
4. Take-up tension control: AC frequency conversion motor drives take-up.

Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity 0
Technical Specifications
(Custom configurations available upon request.)
Model
FC-652D
FC-653D
FC-654D
FC-802C
FC-803C
Wire dia. (mm)
Φ0.12-0.45
Φ0.12-0.68
Φ0.12-0.68
Φ0.15-1.35
Φ0.15-1.35
Cross section (mm2 )
0.35-4.0
0.35-6.0
0.35-6.0
1.0-16.0
1.0-16.0
Pitch (mm)
10-100
10-100
6.5-75
20-160
20-160
Pitch adjusting method
PLC control
PLC control
Manual
PLC control
PLC control
Spool size(mm)
Φ500-630
Φ500-630
Φ500-630
Φ630-800
Φ630-800
Max speed (rpm)
2600
2600
2600
1800
1800
Total power
15KW
15KW
15KW
18.5KW
18.5KW
Stranding direction
S/Z
S/Z
S/Z
S/Z
S/Z
Overall Size(mm)
3650*2000*2200
4600*2100*2200
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering
team can provide tailored designs to meet specific project requirements.
Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity 1
After Sales Service
Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity 2
Kunshan Fuchuan Electrical & Mechanical Co., Ltd.
Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over 20
years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed by
R&D innovation and strict quality control.
Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity 3
Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity 4
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Stranding machine
Back-twist bunching machine
Signle twist bunching machine
Torsion-free cable-laying machine
Pay-off machine
Extruding machine
Rewinding machine
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 45–60 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
